The HD-205-WU is an HDMI-capable digital camera, delivering 1080p video up to 60fps, and 5MP still images. The highly-sensitive digital sensor makes this camera ideal for low-light applications, including dark-field and fluorescence. Able to be used as a standalone recording device using Secure Digital memory, or as a WiFi camera on a networked computer, this is an extremely flexible imaging solution. The industry-standard C-mount design allows this camera to be connected directly to C-mount photo-ports, or used in conjunction with an array of lenses and adapters to mount to virtually any popular microscope line.
Includes

0.7X-4.5X Mini Zoom Video Inspection Lens for Cameras with Sensors up to 2/3" Format

Connected to an HDMI monitor or TV, 1080p live video can be viewed at a super-smooth 60fps. The included USB mouse allows you to make adjustments in the internal software for settings such as white-balance and exposure, and control recording functions. As an alternative solution, connect to the camera over WiFi for remote software control, with 25fps streaming. The included Windows software offers image-development and measurement tools, as well as advanced compositing features such as image-stitching and extended-depth-of-focus. With the ability to calibrate scales at multiple magnifications, the software can be used for multi-level inspection. For Mac and Linux, there is a lite version of the software which can capture video and still images, and includes limited processing features.

Notice: an adapter is required to mount the camera to 23mm photo ports. A 0.5X reduction lens is recommended.

OMAX M5 Mini series provides high quality zoom optics in a smaller and more economical lens. These lenses can be used with a wide range of C-Mount cameras to easily integrate into standalone or computer-based workflows. The 50mm mounting diameter works with small-profile table-stands and large-format boom and articulating supports. Multiple illumination options are available to complete the package.

Zoom Optics

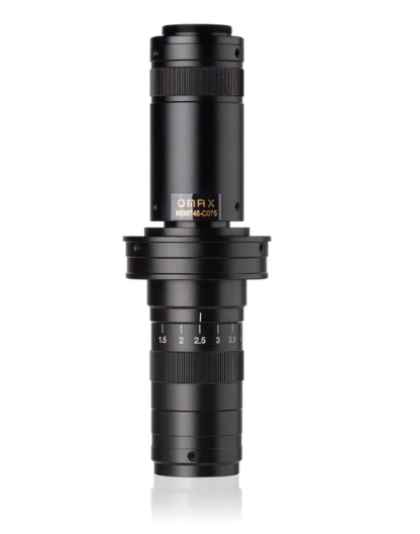

The M5M745 lens provides a 0.7X to 4.5X zoom range with stunning clarity. The continuous zoom allows you to increase and decrease magnification quickly and precisely. This C075 model includes an integrated 0.75X compensating lens to optimize the field of view for 2/3" format and smaller camera sensors.

Support Options

M5M745 series lenses are designed to be used with a range of support systems, including table stands, boom stands, and articulating stands. The lens can be mounted in 50mm collars, or combined with the AD-SZ76 adapter to fit the 76mm collars used by our most popular stands.

Single Lens vs Stereo

While stereo microscopes view subjects with three-dimensional depth for applications such as micro-soldering and dissection, the stereo lens design is not optimal for producing accurate photos or videos due to off-axis, angular distortion and keystoning. Using a single lens allows you to view subjects on a single axis to achieve focus across the entire field, and without the angular distortion. This makes the single lens ideal for video monitoring systems and photomicrography. By providing a similar magnification range as stereo microscopes, the single-lens solution can easily fit into similar workflows.

Packing List:

• One C-Mount lens
• One hex wrench

Contents:

• One HD Digital Camera
• One USB Mouse
• One USB WiFi Antenna
• One HDMI Cable
• One SD Card
• One Power Adapter

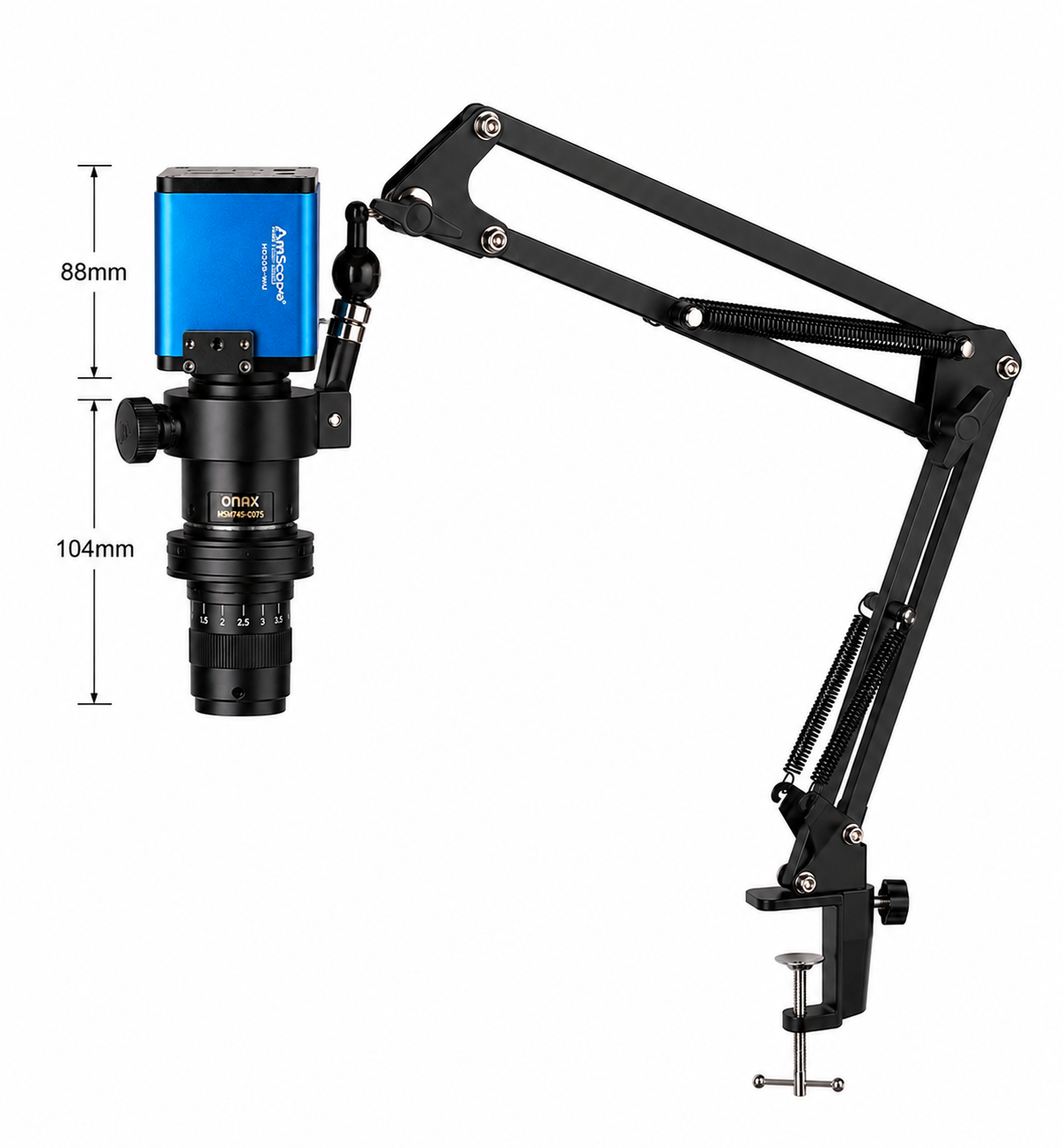

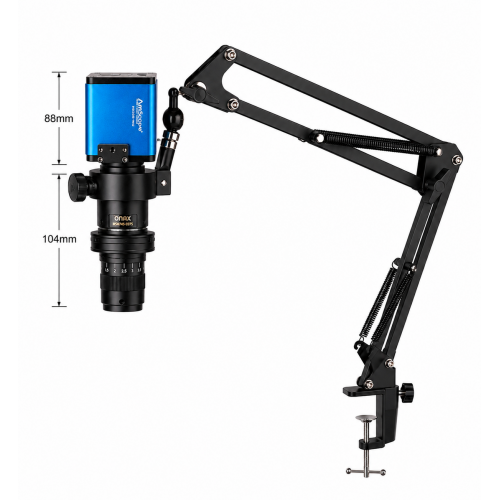

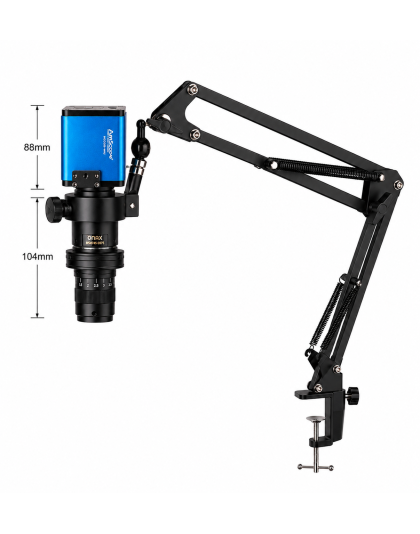

• One Omax 0.7X-4.5X zoom lens
• One articulating arm with a desktop clamp

• Availability: In Stock at Supplier
• Model: HD205-WU-3PL-lenskit
• Manufacturer:
