AmScope MU Amscope 10.0MP USB 2.0 High-speed Color CMOS C-Mount Microscope Camera with Reduction Lens
Amscope
The MU1000-HS is a higher-speed version of our 10MP digital camera. An increased buffer allows for an increase in framerate. This C-mount camera is used for microscopes, designed to capture still images, as well as stream and record live video on Windows, Mac, and Linux computers.
R7,898.00
R9,020.00
Camera Specifications:
- Sensor: Aptina MT9J001
- Sensor Size: 1/2.3" (6.44mm(H) x 4.616mm(V))
- Resolution: 3584 x 2748 (approx. 10,000,000 pixels)
- Reduction Lens: 0.5X
- Pixel Size: 1.67µm x 1.67µm
- Frame Rate: 38fps @872x654, 11fps @1744x1308, 3.3fps @3584x2748
- Exposure: 0.4~2000ms, ROI Auto & Manual
- Scan Mode: Progressive
- Dynamic Range: 65.2dB
- A/D Converter: 12-bit Parallel, 8-bit R.G.B to computer
- SN Ratio: 34dB
- Spectral Range: 380-650nm (with IR-filter)
- Binning: 1x1, 2x2, 4x4
- White balance: ROI White Balance/ Manual Temp-Tint Adjustment
- Color Rendering Technique: Ultra Fine Color Engine
- Capture/Control API: Native C/C++, C#, Directshow, Twain, Labview
- Recording System: Still Picture and Movie
- Cooling System: Natural
- Operating Temperature: -10°C~50°C
- Storage Temperature: -20°C~60°C
- Operating Humidity: 30~80%RH
- Storage Humidity: 10~60%RH
- Power Supply: DC 5V over USB Port
Software Features:
- Operating System: Windows XP/Vista/7/8/10 (32 & 64 bit), Mac OS X, Linux
- PC Requirements: CPU equals to Intel Core2 2.8GHz or higher, Memory: 2GB or more, USB2.0 port
- Advanced software for Windows:
- offers Stitching, EDF, video recording and measurement functions
- conducts measurements for lengths, angles, arcs, areas and etc.
- saves still images in BMP, TIFF, JPG, PICT, PTL or other formats
- edit and process microscopy images in a manner similar to PhotoShop
- live video and still image capture can be set in different resolutions simultaneously
More features: add layers, watermarks, mosaics, tiles; adjust color balance, exposure, saturation, contrast, orientation; change resolution, histogram, granulation, diffusion; transform images via edge detection, digital image warping; conducts measurements for single, parallel or perpendicular lines and rectangular, elliptical and irregular areas; adds notes, measurements, text, arrows, labels, and etc. using customizable text with different sizes and colors; conducts measurements in microns, millimeters, centimeters, inches, feet, and etc. under any magnification powers with desired tolerances - Life-time free software upgrades

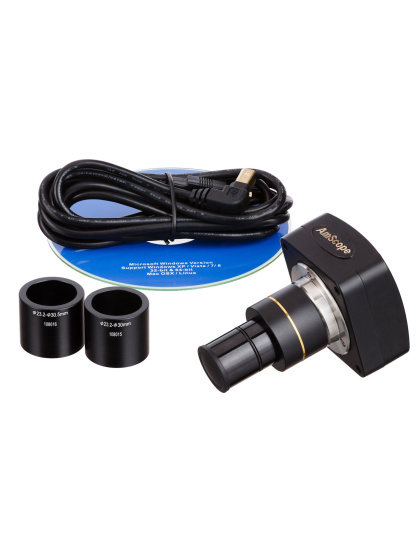

Packing List:
- 10MP digital camera
- 0.5X reduction lens
- 6' (1.8m) USB cable
- 30mm and 30.5mm adapters
- Download software
- Availability: In Stock at Supplier, ETA 7 - 14 days
-
