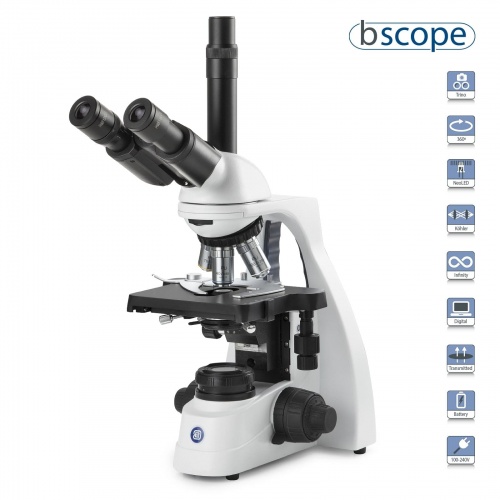

Euromex bScope Series Trinocular Compound Microscope with Plan IOS Objectives

R37,008.18
Qty:
Download Quote Print product description

The well-equipped microscopes of the bScope series are intensively used in secondary schools, universities, small and mid-sized laboratories and for veterinary applications. Apart from an excellent ergonomical design, these robust and attractively priced microscopes are available in several configurations with HWF 10x/20mm eyepieces and objectives for bright field and phase contrast.

The design of the bScope BS1153-PLi is both ergonomic and evolutive. Height adjustable eyepieces and low stage controls minimize fatigue during long working sessions and therefore providing more comfort for microscopists. The robust and compact size of the bScope with its Cable Storage System allows more working space, safer operation and easy storage.

Features:

  • Trinocular model
  • Unique swiveling system of the eyepiece tubes for ergonomic positioning of the eyepieces in a high and in a low position HWF 10x/20mm eyepieces
  • Reversed quintuple nosepiece with slot for polarization filter
  • Plan IOS objectives
  • Rackless integrated X-Y mechanical stage
  • Coaxial coarse and fine adjustment with adjustable rack-stop
  • 3 W Kohler NeoLED illumination
  • Cable Storage System
  • Integrated carrying grip

    • Specifications:

    EYEPIECE(S)

  • High wide field HWF 10x/20mm secured eyepieces with 20mm field of view.

    • HEAD

  • Trinocular model equipped with a diopter ± 5 adjustment on left eyepiece
  • 2-postion swiveling ergo head - Unique swiveling system of the eyepiece tubes for ergonomic positioning of the eyepieces in a high and in a low position
  • Interpupillary distance is adjustable between 48 to 76mm
  • Prisms inside the heads are designed to minimize light absorption

    • NOSEPIECE

  • Revolving and reversed ball-beared quintuple nosepiece

    • OBJECTIVES

  • State-of-the-art production techniques and multi-layer coatings used for the manufacturing of the objectives enables the bScope microscope to be used for the most demanding applications. World class spherical aberration correction and modern CNC and assembly technology ensure the perfect centering of the objectives
  • Infinity corrected 4x/0.10, 10x/0.25, S40x/0.65 and S100x/1.25 oil immersion objectives
  • S40x and S100x oil immersion objectives are spring loaded
  • All optics are anti-fungus treated and anti-reflection coated for maximum light throughput

    • FOCUSING

  • Double coaxial, low-positioned coarse and fine adjustments with 180 graduations. Precision 1.11 µm, 200 µm per rotation, total travel approximately 19mm. Supplied with an adjustable rack stop to prevent damage to sample and objectives. The coarse adjustment is equipped with friction control

    • STAGE

  • Equipped with a scratch resistant 152/197 x 131mm stage with integrated 75 x 36mm X-Y rackless mechanical stage, Vernier scale, soft-close removable specimen holder
  • The rackless stage has no protruding parts, enables more smooth movements and is safer in use. Low-positioned X-Y control knobs prevent fatigue during long working sessions.

    • CONDENSER FOR BRIGHTFIELD

  • The standard in height adjustable Abbe N.A. 1.25 condenser for brightfield comes with an iris diaphragm and swing-out filter holder

    • ILLUMINATION

  • Equipped with a 3 W NeoLED adjustable illumination system for increased light output and a 100-240 V integrated power supply

    • NEOLED ILLUMINATION

  • The 3 W adjustable NeoLED diascopic illumination is powered by an internal 100-240 V power supply making it suitable for worldwide use. The innovative NeoLED design offers larger apertures, allowing the optical system of the bScope microscope to produce images at higher resolutions, very close to the theoretical diffraction limit of the optics. Other benefits of the NeoLED is the low energy consumption, no heating and a long operating lifetime.

    • KOHLER ILLUMINATION

  • A Kohler illumination ensures the highest possible contrast and the maximum achievable resolving power. It generates a uniform illumination of the sample and eliminates all interference from dust on lenses and side glare of the light source

    • CSS – CABLE STORAGE SYSTEM

  • Allows users to easily stow away excess cable length into the back of the instrument during operation and to roll up the power cable for easy storage

    • CARRYING GRIP

  • Integrated carrying grip at the back of the microscope ensures safe transportation of the microscope

    • ANTI-THEFT SLOT

  • At the back of the microscope a Kensington Security Slot is placed, which can be used to secure the instrument from theft

    • PACKAGE CONTENT

  • Smart Styrofoam packaging ensures a low environmental footprint while maintaining maximum safety during transport. Supplied with power cord, dust cover, a spare fuse, white filter, user manual and 5 ml immersion oil.
    • Availability: In Stock at Supplier, ETA 7 - 14 days
    • Model: BS1153-PLI
